Writing desk (bureau plat) CAD block

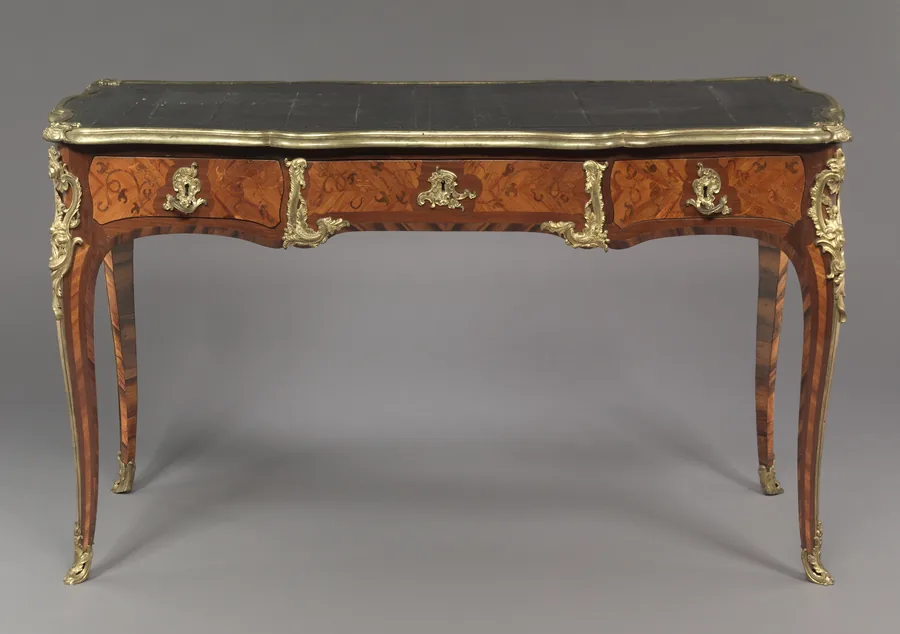

A Louis XV bureau plat, the French writing table, made in Paris in the mid-1700s: a serpentine leather-lined top, three frieze drawers and slender cabriole legs with gilt-bronze mounts. 1518 mm wide and 769 mm deep, for a study, a library or a bedroom window.
Photo: The Cleveland Museum of Art, CC0 (public domain). Source
- Item
- Writing desk (bureau plat)
- Size
- W 1518 × D 769 × H 750 mm
- Sized by
- Measured by the museum
- Format
- DXF, millimetres
- Blocks
- BUREAU_PLAT_LOUIS_XVwith _PLAN, _FRONT and _SIDE
What's in the file
- Three blocks
- BUREAU_PLAT_LOUIS_XV_PLAN, BUREAU_PLAT_LOUIS_XV_FRONT and BUREAU_PLAT_LOUIS_XV_SIDE. The plan's insertion point is the back-left corner; the elevations sit at floor level.
- Layers
- The outline is on layer 0 with ByBlock colour, so each block takes the layer you insert it on. Detail lines are on I-FURN-DETL and dashed hidden edges on I-FURN-HIDN, so you can switch either off.
- Size
- W 1518 × D 769 × H 750 mm. Measured by the museum, so check it against the piece you're specifying, and scale it if yours differs.
- SketchUp
- The DXF for SketchUp is the same block with a surface in every closed area, so the Paint Bucket fills each one in one click. Import it with Merge coplanar faces ticked: how to import it.
- Use
- Free for your own projects, including drawings for clients. Please don't share it as part of a block library.
