Writing table with bobbin-turned legs CAD block

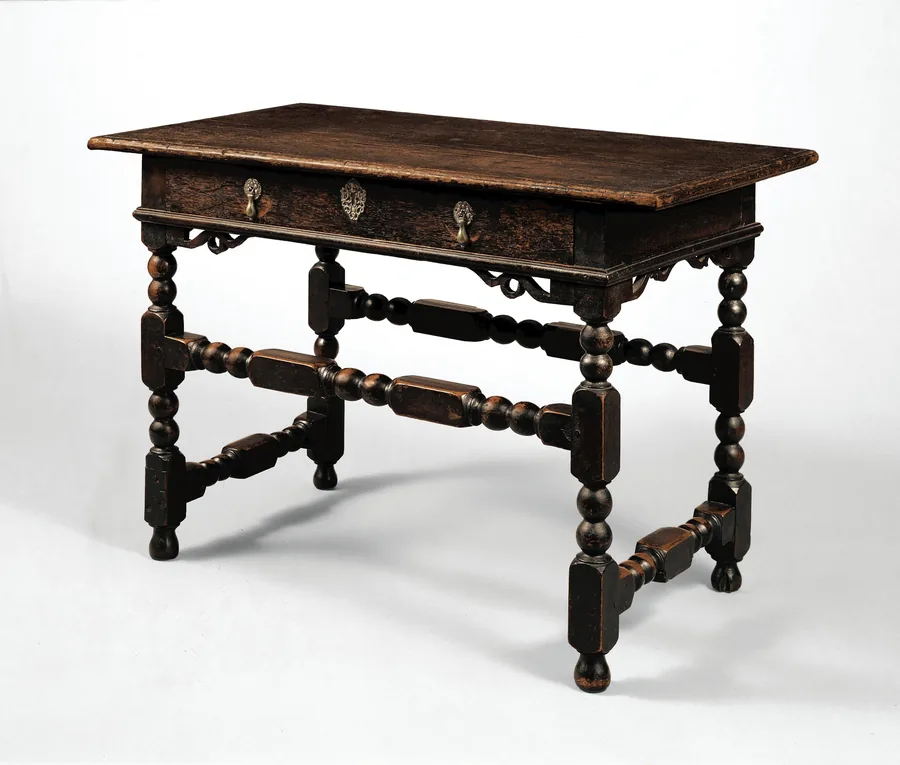

A joined writing table made in New England around 1700, with bobbin-turned legs and stretchers, one drawer and pierced corner brackets. At 1022 mm wide and 540 mm deep it suits a study, a landing or a hall; it is 673 mm high, a little lower than a modern desk.
Photo: The Metropolitan Museum of Art, CC0 (public domain). Source
- Item
- Writing table with bobbin-turned legs
- Size
- W 1022 × D 540 × H 673 mm
- Sized by
- Measured by the museum
- Format
- DXF, millimetres
- Blocks
- WRITING_TABLE_BOBBINwith _PLAN, _FRONT and _SIDE
What's in the file
- Three blocks
- WRITING_TABLE_BOBBIN_PLAN, WRITING_TABLE_BOBBIN_FRONT and WRITING_TABLE_BOBBIN_SIDE. The plan's insertion point is the back-left corner; the elevations sit at floor level.
- Layers
- The outline is on layer 0 with ByBlock colour, so each block takes the layer you insert it on. Detail lines are on I-FURN-DETL and dashed hidden edges on I-FURN-HIDN, so you can switch either off.
- Size
- W 1022 × D 540 × H 673 mm. Measured by the museum, so check it against the piece you're specifying, and scale it if yours differs.
- SketchUp
- The DXF for SketchUp is the same block with a surface in every closed area, so the Paint Bucket fills each one in one click. Import it with Merge coplanar faces ticked: how to import it.
- Use
- Free for your own projects, including drawings for clients. Please don't share it as part of a block library.
