Fridge freezer CAD block

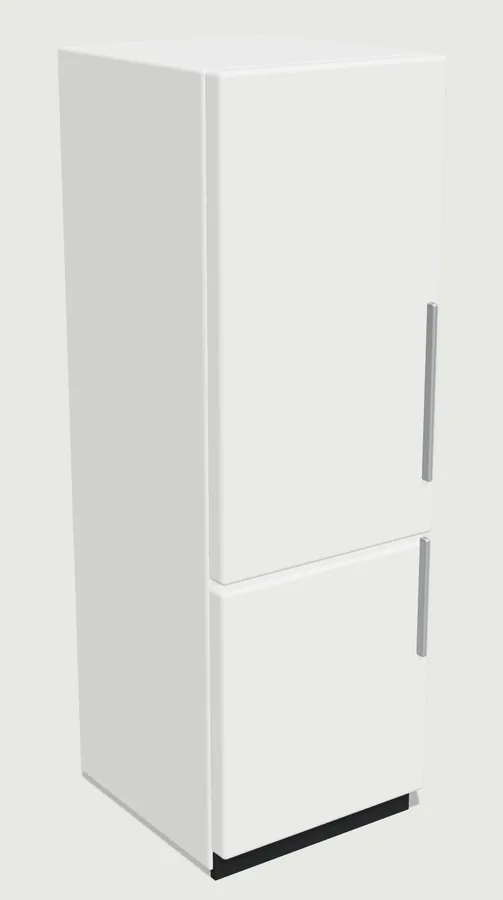

A 600 mm freestanding fridge-freezer, 1850 mm high: the fridge above, the freezer below, and bar handles on the right.
3D render: CAD Blocks, from our own generic 3D model.
- Item
- Fridge freezer
- Size
- W 600 × D 690 × H 1850 mm
- Sized by
- From our 3D model
- Format
- DXF, millimetres
- Blocks
- FRIDGE_FREEZER_600with _PLAN, _FRONT and _SIDE
What's in the file
- Three blocks
- FRIDGE_FREEZER_600_PLAN, FRIDGE_FREEZER_600_FRONT and FRIDGE_FREEZER_600_SIDE. The plan's insertion point is the back-left corner; the elevations sit at floor level.
- Layers
- The outline is on layer 0 with ByBlock colour, so each block takes the layer you insert it on. Detail lines are on I-FURN-DETL and dashed hidden edges on I-FURN-HIDN, so you can switch either off.
- Size
- W 600 × D 690 × H 1850 mm. From our 3D model, so check it against the piece you're specifying, and scale it if yours differs.
- SketchUp
- The DXF for SketchUp is the same block with a surface in every closed area, so the Paint Bucket fills each one in one click. Import it with Merge coplanar faces ticked: how to import it.
- Use
- Free for your own projects, including drawings for clients. Please don't share it as part of a block library.
