Kitchen sink unit CAD block

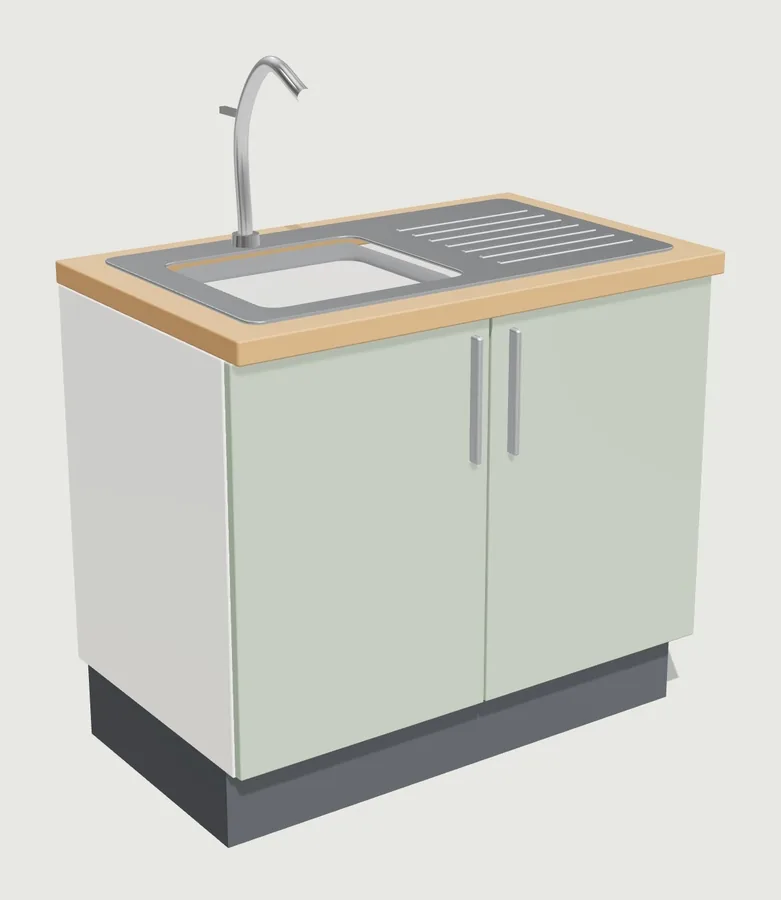

A 1000 mm kitchen sink base unit: two doors, an inset stainless steel sink with a drainer, an oak worktop at 900 mm and a swan-neck tap.
3D render: CAD Blocks, from our own generic 3D model.
- Item
- Kitchen sink unit
- Size
- W 1000 × D 620 × H 1250 mm
- Sized by
- From our 3D model
- Format
- DXF, millimetres
- Blocks
- KITCHEN_SINK_UNIT_1000with _PLAN, _FRONT and _SIDE
What's in the file
- Three blocks
- KITCHEN_SINK_UNIT_1000_PLAN, KITCHEN_SINK_UNIT_1000_FRONT and KITCHEN_SINK_UNIT_1000_SIDE. The plan's insertion point is the back-left corner; the elevations sit at floor level.
- Layers
- The outline is on layer 0 with ByBlock colour, so each block takes the layer you insert it on. Detail lines are on I-FURN-DETL and dashed hidden edges on I-FURN-HIDN, so you can switch either off.
- Size
- W 1000 × D 620 × H 1250 mm. From our 3D model, so check it against the piece you're specifying, and scale it if yours differs.
- SketchUp
- The DXF for SketchUp is the same block with a surface in every closed area, so the Paint Bucket fills each one in one click. Import it with Merge coplanar faces ticked: how to import it.
- Use
- Free for your own projects, including drawings for clients. Please don't share it as part of a block library.
Using it in your CAD program
More kitchen
| Photo | Block | Size | File |
|---|---|---|---|
 | Fridge freezerFRIDGE_FREEZER_600 | W 600 × D 690 × H 1850 mm | DXFSketchUp |
Can't find your exact product?
Draw it from a photo. Drop in a product photo or a screenshot from the maker's website, give the size, and CAD Blocks draws its plan, front and side as a DXF. Your first three blocks each month are free.
Draw your own block
