Outdoor bench CAD block
An 1800 mm outdoor bench with black steel end frames, armrests and timber slats, for parks, gardens and terraces.

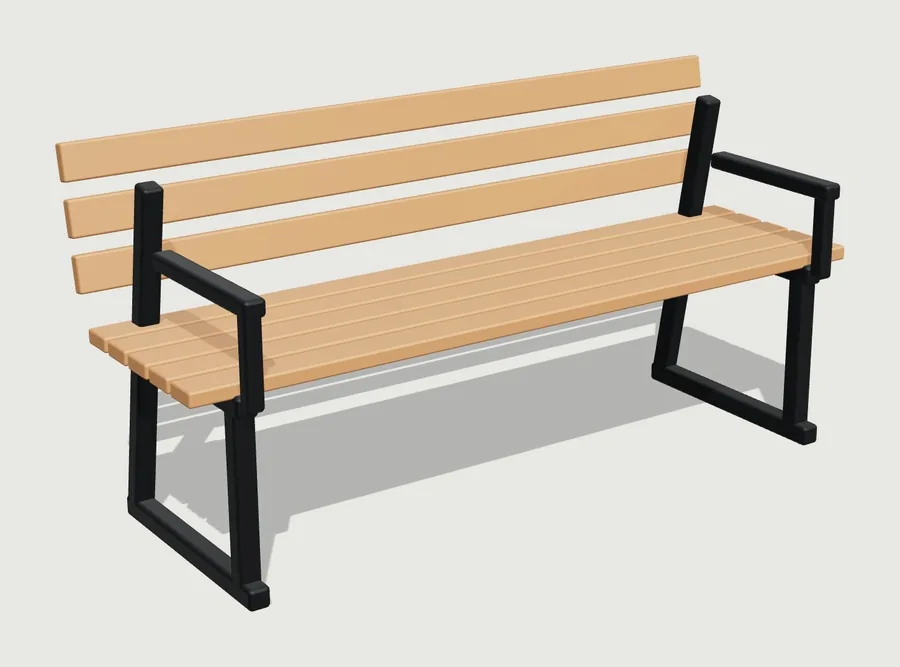

3D render: CAD Blocks, from our own generic 3D model.
- Item
- Outdoor bench
- Size
- W 1800 × D 665 × H 885 mm
- Sized by
- From our 3D model
- Format
- DXF, millimetres
- Blocks
- BENCH_OUTDOOR_SLATTEDwith _PLAN, _FRONT and _SIDE
What's in the file
- Three blocks
- BENCH_OUTDOOR_SLATTED_PLAN, BENCH_OUTDOOR_SLATTED_FRONT and BENCH_OUTDOOR_SLATTED_SIDE. The plan's insertion point is the back-left corner; the elevations sit at floor level.
- Layers
- The outline is on layer 0 with ByBlock colour, so each block takes the layer you insert it on. Detail lines are on I-FURN-DETL and dashed hidden edges on I-FURN-HIDN, so you can switch either off.
- Size
- W 1800 × D 665 × H 885 mm. From our 3D model, so check it against the piece you're specifying, and scale it if yours differs.
- SketchUp
- The DXF for SketchUp is the same block with a surface in every closed area, so the Paint Bucket fills each one in one click. Import it with Merge coplanar faces ticked: how to import it.
- Use
- Free for your own projects, including drawings for clients. Please don't share it as part of a block library.
