Picnic table CAD block

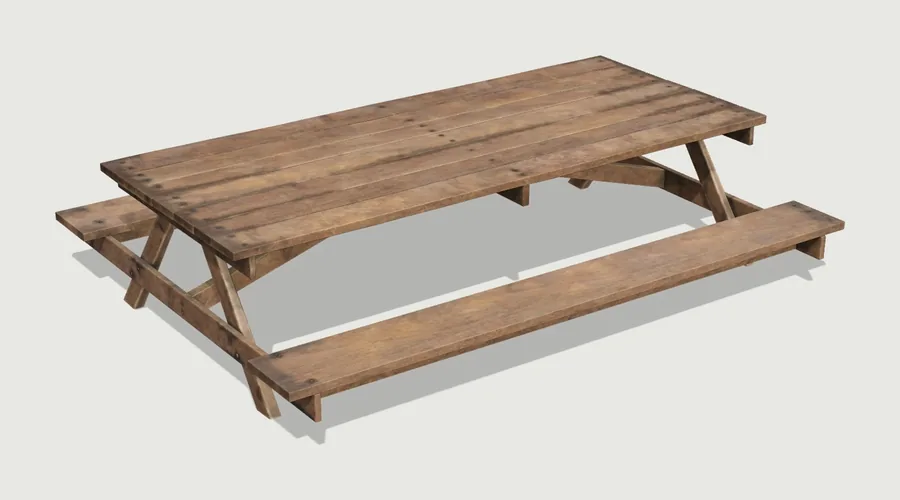

A large timber picnic table, 3020 mm long, with two separate benches; 2240 mm across both benches. For pub gardens, cafés and parks.
3D render: CAD Blocks, from a Poly Haven 3D model by Ulan Cabanilla, CC0. Source
- Item
- Picnic table
- Size
- W 3020 × D 2240 × H 745 mm
- Sized by
- From the 3D model
- Format
- DXF, millimetres
- Blocks
- PICNIC_TABLE_BENCHESwith _PLAN, _FRONT and _SIDE
What's in the file
- Three blocks
- PICNIC_TABLE_BENCHES_PLAN, PICNIC_TABLE_BENCHES_FRONT and PICNIC_TABLE_BENCHES_SIDE. The plan's insertion point is the back-left corner; the elevations sit at floor level.
- Layers
- The outline is on layer 0 with ByBlock colour, so each block takes the layer you insert it on. Detail lines are on I-FURN-DETL and dashed hidden edges on I-FURN-HIDN, so you can switch either off.
- Size
- W 3020 × D 2240 × H 745 mm. From the 3D model, so check it against the piece you're specifying, and scale it if yours differs.
- SketchUp
- The DXF for SketchUp is the same block with a surface in every closed area, so the Paint Bucket fills each one in one click. Import it with Merge coplanar faces ticked: how to import it.
- Use
- Free for your own projects, including drawings for clients. Please don't share it as part of a block library.
