Side table with turned legs CAD block

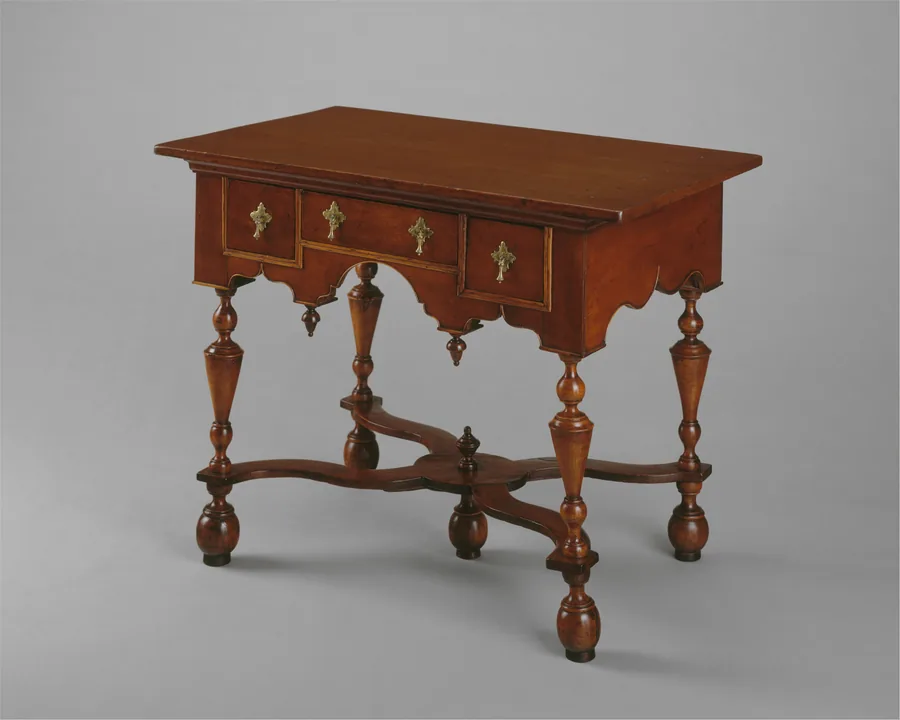

A William and Mary dressing table from about 1720, with three drawers, a scalloped apron with drop finials, trumpet-turned legs on ball feet and a flat X-shaped stretcher. At 908 mm wide it works as a hall console, a dressing table or a lamp table behind a sofa.
Photo: The Metropolitan Museum of Art, CC0 (public domain). Source
- Item
- Side table with turned legs
- Size
- W 908 × D 511 × H 711 mm
- Sized by
- Measured by the museum
- Format
- DXF, millimetres
- Blocks
- SIDE_TABLE_WILLIAM_MARYwith _PLAN, _FRONT and _SIDE
What's in the file
- Three blocks
- SIDE_TABLE_WILLIAM_MARY_PLAN, SIDE_TABLE_WILLIAM_MARY_FRONT and SIDE_TABLE_WILLIAM_MARY_SIDE. The plan's insertion point is the back-left corner; the elevations sit at floor level.
- Layers
- The outline is on layer 0 with ByBlock colour, so each block takes the layer you insert it on. Detail lines are on I-FURN-DETL and dashed hidden edges on I-FURN-HIDN, so you can switch either off.
- Size
- W 908 × D 511 × H 711 mm. Measured by the museum, so check it against the piece you're specifying, and scale it if yours differs.
- SketchUp
- The DXF for SketchUp is the same block with a surface in every closed area, so the Paint Bucket fills each one in one click. Import it with Merge coplanar faces ticked: how to import it.
- Use
- Free for your own projects, including drawings for clients. Please don't share it as part of a block library.
