Trestle dining table (Shaker) CAD block

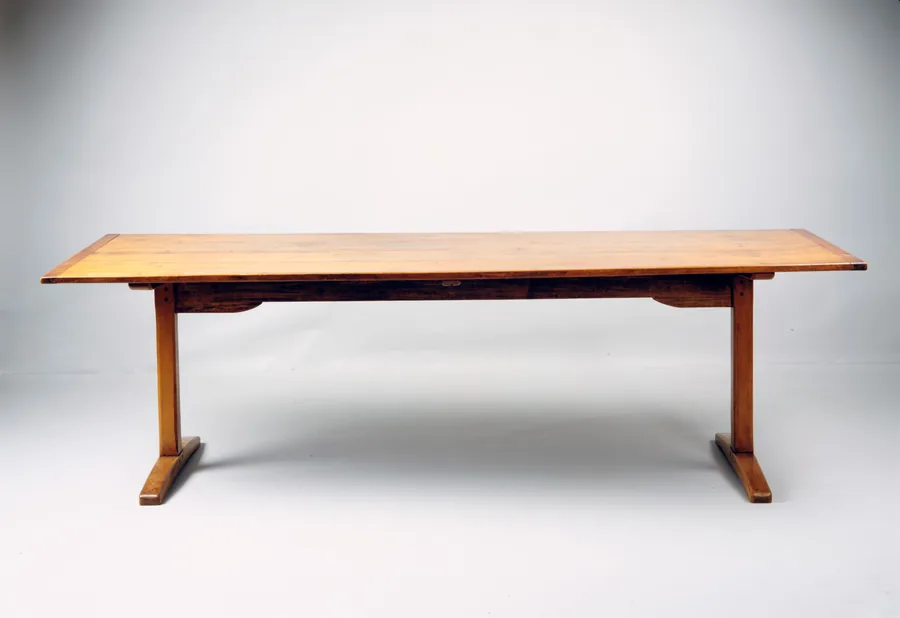

A Shaker dining table from the early 1800s: a plain top 2.45 m long on two T-shaped trestles joined by one stretcher. It seats eight and reads as a modern refectory table.
Photo: The Metropolitan Museum of Art, CC0 (public domain). Source
- Item
- Trestle dining table (Shaker)
- Size
- W 2451 × D 794 × H 724 mm
- Sized by
- Measured by the museum
- Format
- DXF, millimetres
- Blocks
- TRESTLE_DINING_TABLEwith _PLAN, _FRONT and _SIDE
What's in the file
- Three blocks
- TRESTLE_DINING_TABLE_PLAN, TRESTLE_DINING_TABLE_FRONT and TRESTLE_DINING_TABLE_SIDE. The plan's insertion point is the back-left corner; the elevations sit at floor level.
- Layers
- The outline is on layer 0 with ByBlock colour, so each block takes the layer you insert it on. Detail lines are on I-FURN-DETL and dashed hidden edges on I-FURN-HIDN, so you can switch either off.
- Size
- W 2451 × D 794 × H 724 mm. Measured by the museum, so check it against the piece you're specifying, and scale it if yours differs.
- SketchUp
- The DXF for SketchUp is the same block with a surface in every closed area, so the Paint Bucket fills each one in one click. Import it with Merge coplanar faces ticked: how to import it.
- Use
- Free for your own projects, including drawings for clients. Please don't share it as part of a block library.
