Corner shower enclosure CAD block

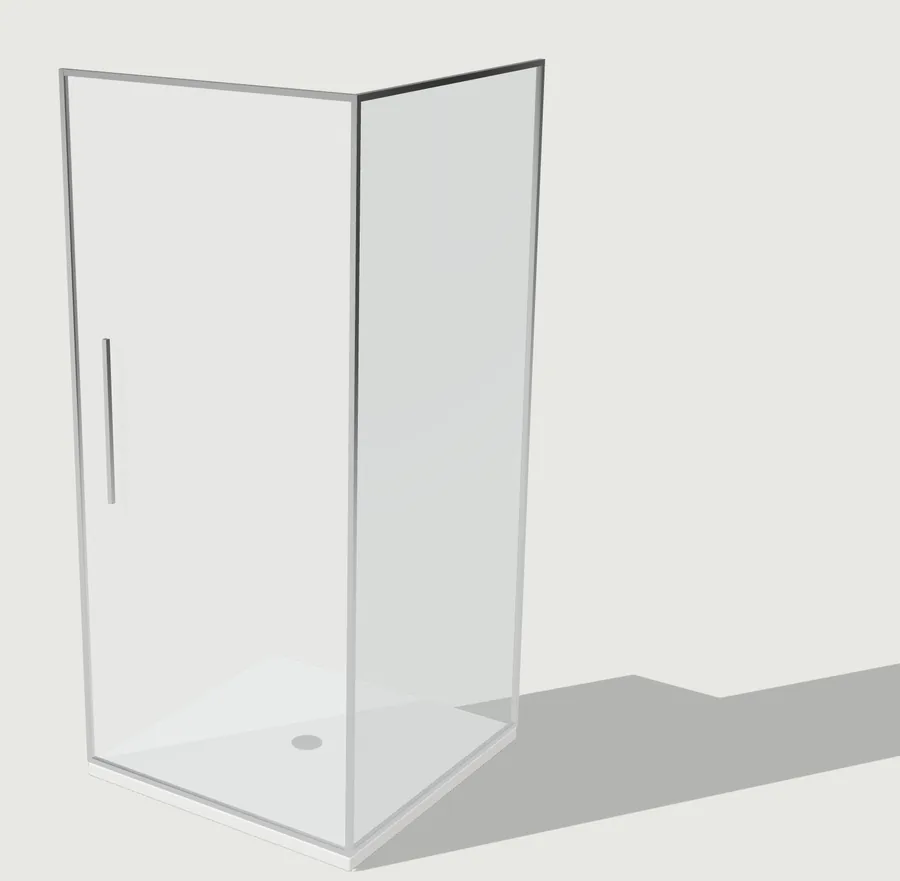

A 900 x 900 mm corner shower: a low shower tray with a centre drain, a framed glass door with a bar handle and a fixed glass side panel, 1995 mm high.
3D render: CAD Blocks, from our own generic 3D model.
- Item
- Corner shower enclosure
- Size
- W 900 × D 935 × H 1995 mm
- Sized by
- From our 3D model
- Format
- DXF, millimetres
- Blocks
- SHOWER_CORNER_900X900with _PLAN, _FRONT and _SIDE
What's in the file
- Three blocks
- SHOWER_CORNER_900X900_PLAN, SHOWER_CORNER_900X900_FRONT and SHOWER_CORNER_900X900_SIDE. The plan's insertion point is the back-left corner; the elevations sit at floor level.
- Layers
- The outline is on layer 0 with ByBlock colour, so each block takes the layer you insert it on. Detail lines are on I-FURN-DETL and dashed hidden edges on I-FURN-HIDN, so you can switch either off.
- Size
- W 900 × D 935 × H 1995 mm. From our 3D model, so check it against the piece you're specifying, and scale it if yours differs.
- SketchUp
- The DXF for SketchUp is the same block with a surface in every closed area, so the Paint Bucket fills each one in one click. Import it with Merge coplanar faces ticked: how to import it.
- Use
- Free for your own projects, including drawings for clients. Please don't share it as part of a block library.
