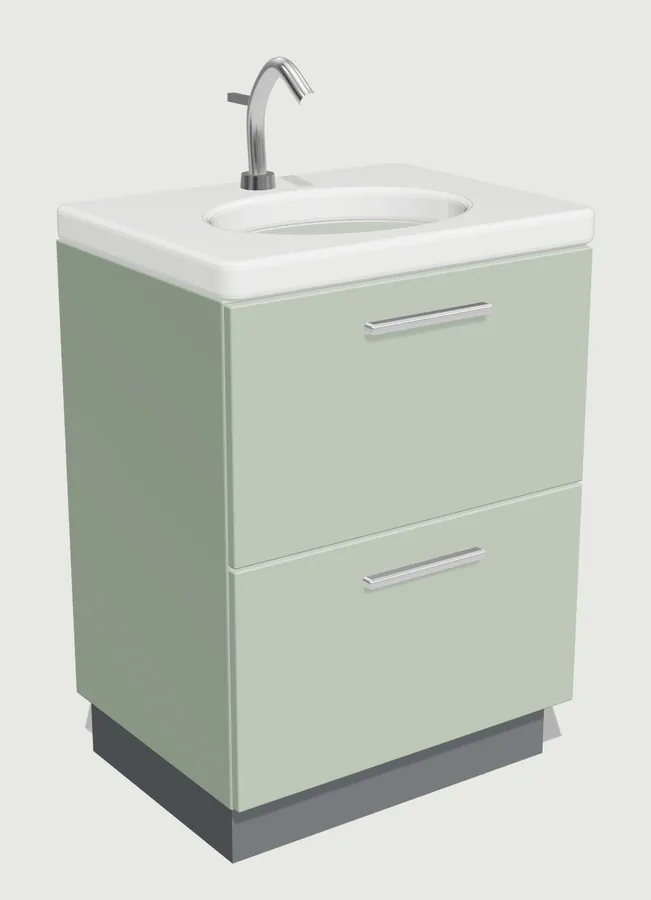

Vanity unit with basin CAD block

What's in the file

Three blocks

VANITY_UNIT_2DRW_BASIN_PLAN, VANITY_UNIT_2DRW_BASIN_FRONT and VANITY_UNIT_2DRW_BASIN_SIDE. The plan's insertion point is the back-left corner; the elevations sit at floor level.

Layers

The outline is on layer 0 with ByBlock colour, so each block takes the layer you insert it on. Detail lines are on I-FURN-DETL and dashed hidden edges on I-FURN-HIDN, so you can switch either off.

Size

W 610 × D 490 × H 1045 mm. From our 3D model, so check it against the piece you're specifying, and scale it if yours differs.

SketchUp

The DXF for SketchUp is the same block with a surface in every closed area, so the Paint Bucket fills each one in one click. Import it with Merge coplanar faces ticked: how to import it.

Use

Free for your own projects, including drawings for clients. Please don't share it as part of a block library.

Using it in your CAD program

• Using these blocks in AutoCAD
• Using these blocks in Revit
• Using these blocks in SketchUp
• Using these blocks in Vectorworks
• Using these blocks in Archicad
• Using these blocks in Chief Architect
• Using these blocks in Rhino
