Four-poster bed (after Henry Boyd) CAD block

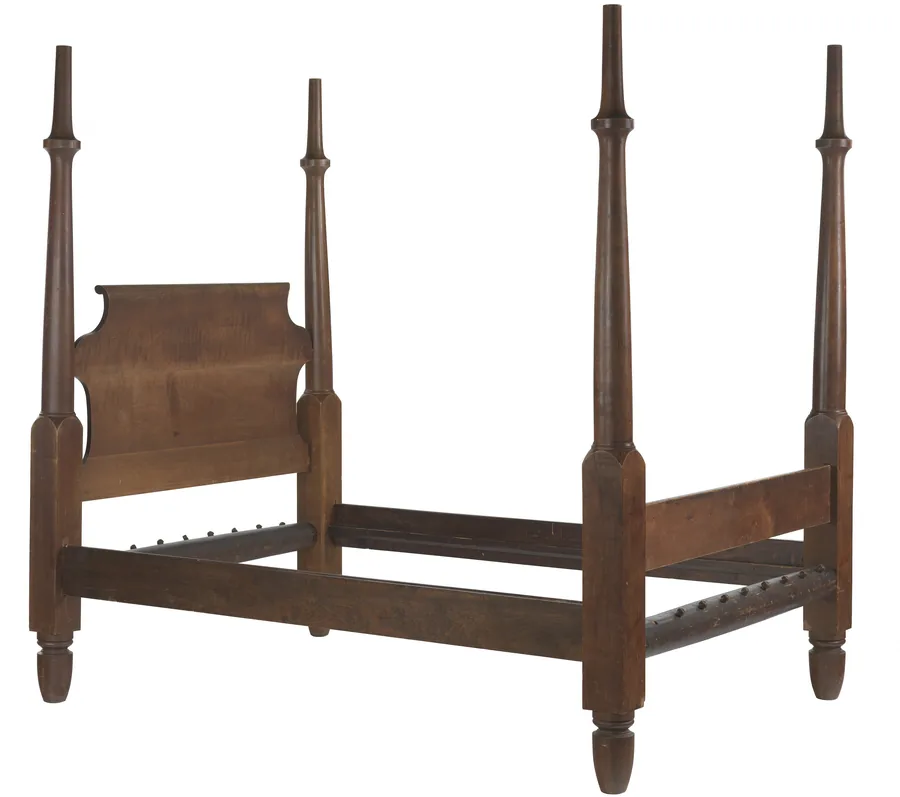

A bedstead from about 1840 by the Cincinnati firm of Henry Boyd, a Black cabinetmaker whose beds had side rails screwed into the posts: four tall tapered posts, a plain scroll headboard and pegs for a rope deck. 1448 mm wide and 2007 mm tall, about the size of a UK double.
Photo: National Museum of African American History and Culture, Smithsonian, CC0 (public domain). Source
- Item
- Four-poster bed (after Henry Boyd)
- Size
- W 1448 × D 2134 × H 2007 mm
- Sized by
- Measured by the museum
- Format
- DXF, millimetres
- Blocks
- BED_FOUR_POSTER_ROPEwith _PLAN, _FRONT and _SIDE
What's in the file
- Three blocks
- BED_FOUR_POSTER_ROPE_PLAN, BED_FOUR_POSTER_ROPE_FRONT and BED_FOUR_POSTER_ROPE_SIDE. The plan's insertion point is the back-left corner; the elevations sit at floor level.
- Layers
- The outline is on layer 0 with ByBlock colour, so each block takes the layer you insert it on. Detail lines are on I-FURN-DETL and dashed hidden edges on I-FURN-HIDN, so you can switch either off.
- Size
- W 1448 × D 2134 × H 2007 mm. Measured by the museum, so check it against the piece you're specifying, and scale it if yours differs.
- SketchUp
- The DXF for SketchUp is the same block with a surface in every closed area, so the Paint Bucket fills each one in one click. Import it with Merge coplanar faces ticked: how to import it.
- Use
- Free for your own projects, including drawings for clients. Please don't share it as part of a block library.
Using it in your CAD program
