Single bed (Shaker) CAD block

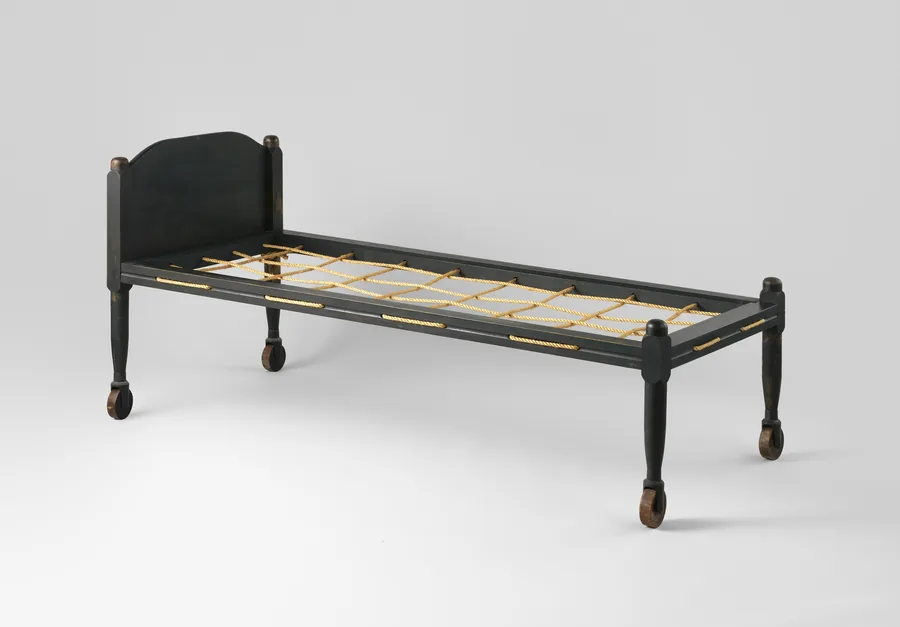

A Shaker bed from the mid-1800s: a plain painted frame with a low arched headboard, turned legs on castors and a rope deck. 762 mm wide and 1803 mm long, close to a UK small single, and as clean-lined as a modern day bed.
Photo: The Metropolitan Museum of Art, CC0 (public domain). Source
- Item
- Single bed (Shaker)
- Size
- W 762 × D 1803 × H 787 mm
- Sized by
- Measured by the museum
- Format
- DXF, millimetres
- Blocks
- BED_SINGLE_ROPE_CASTERSwith _PLAN, _FRONT and _SIDE
What's in the file
- Three blocks
- BED_SINGLE_ROPE_CASTERS_PLAN, BED_SINGLE_ROPE_CASTERS_FRONT and BED_SINGLE_ROPE_CASTERS_SIDE. The plan's insertion point is the back-left corner; the elevations sit at floor level.
- Layers
- The outline is on layer 0 with ByBlock colour, so each block takes the layer you insert it on. Detail lines are on I-FURN-DETL and dashed hidden edges on I-FURN-HIDN, so you can switch either off.
- Size
- W 762 × D 1803 × H 787 mm. Measured by the museum, so check it against the piece you're specifying, and scale it if yours differs.
- SketchUp
- The DXF for SketchUp is the same block with a surface in every closed area, so the Paint Bucket fills each one in one click. Import it with Merge coplanar faces ticked: how to import it.
- Use
- Free for your own projects, including drawings for clients. Please don't share it as part of a block library.
