Bentwood café chair CAD block

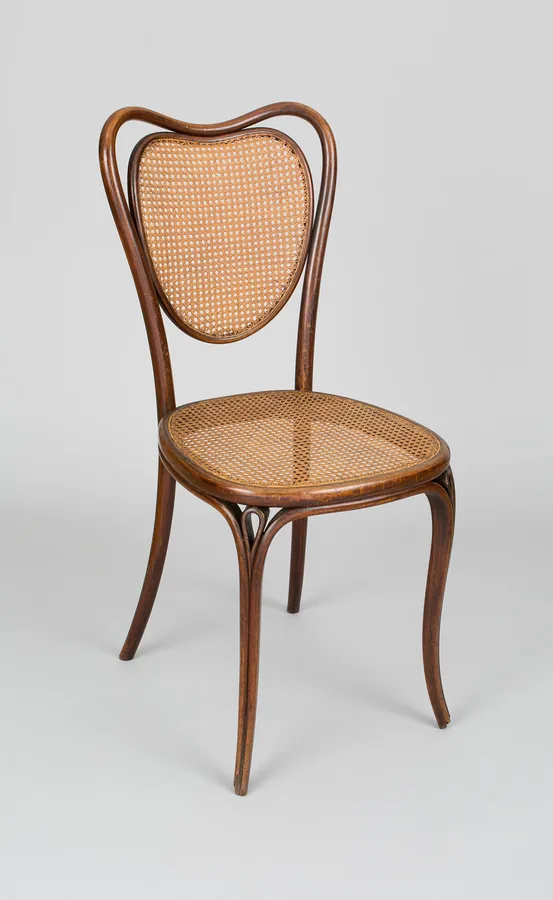

A bentwood side chair after a design by Michael Thonet from about 1850, with a heart-shaped bentwood back, a caned shield and a caned seat. The café chair bistros have used ever since, at 407 mm wide and 909 mm tall.
Photo: Art Institute of Chicago, CC0 (public domain). Source
- Item
- Bentwood café chair
- Size
- W 407 × D 420 × H 909 mm
- Sized by
- Measured by the museum
- Format
- DXF, millimetres
- Blocks
- CHAIR_BENTWOOD_HEARTBACKwith _PLAN, _FRONT and _SIDE
What's in the file
- Three blocks
- CHAIR_BENTWOOD_HEARTBACK_PLAN, CHAIR_BENTWOOD_HEARTBACK_FRONT and CHAIR_BENTWOOD_HEARTBACK_SIDE. The plan's insertion point is the back-left corner; the elevations sit at floor level.
- Layers
- The outline is on layer 0 with ByBlock colour, so each block takes the layer you insert it on. Detail lines are on I-FURN-DETL and dashed hidden edges on I-FURN-HIDN, so you can switch either off.
- Size
- W 407 × D 420 × H 909 mm. Measured by the museum, so check it against the piece you're specifying, and scale it if yours differs.
- SketchUp
- The DXF for SketchUp is the same block with a surface in every closed area, so the Paint Bucket fills each one in one click. Import it with Merge coplanar faces ticked: how to import it.
- Use
- Free for your own projects, including drawings for clients. Please don't share it as part of a block library.
CAD Blocks (cadblocks.app) is not affiliated with Thonet.
