Windsor chair (comb-back) CAD block

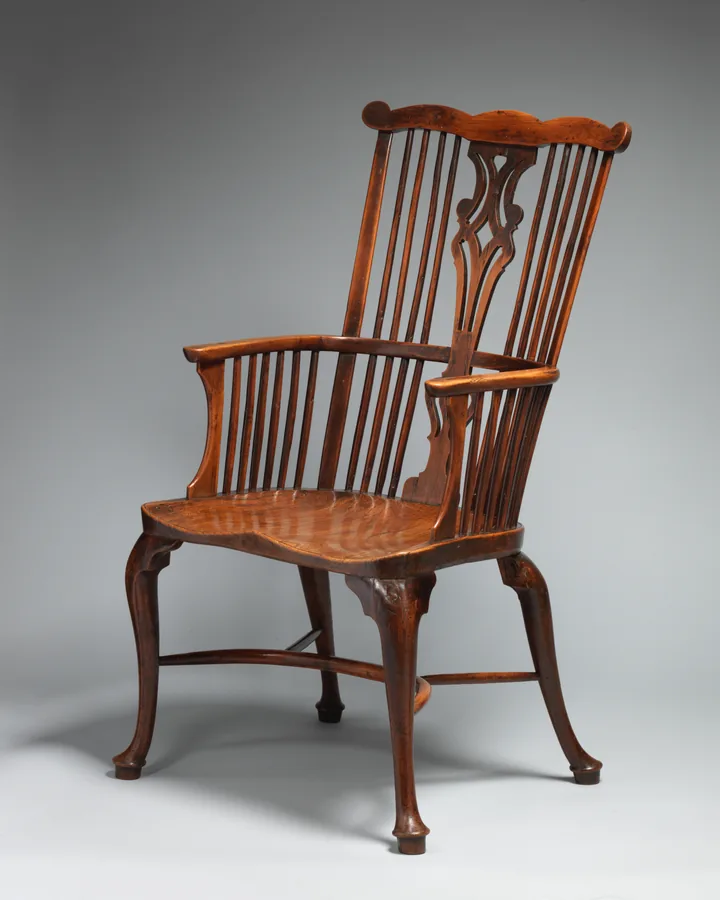

An English comb-back Windsor armchair from about 1770, in yew and elm: a shaped comb crest over spindles and a pierced central splat, a bow arm, a saddle seat and cabriole front legs joined by a crinoline stretcher. 597 mm wide and 1121 mm tall, for a kitchen table or a fireside.
Photo: The Metropolitan Museum of Art, CC0 (public domain). Source
- Item
- Windsor chair (comb-back)
- Size
- W 597 × D 673 × H 1121 mm
- Sized by
- Measured by the museum
- Format
- DXF, millimetres
- Blocks
- ARMCHAIR_WINDSOR_COMBwith _PLAN, _FRONT and _SIDE
What's in the file
- Three blocks
- ARMCHAIR_WINDSOR_COMB_PLAN, ARMCHAIR_WINDSOR_COMB_FRONT and ARMCHAIR_WINDSOR_COMB_SIDE. The plan's insertion point is the back-left corner; the elevations sit at floor level.
- Layers
- The outline is on layer 0 with ByBlock colour, so each block takes the layer you insert it on. Detail lines are on I-FURN-DETL and dashed hidden edges on I-FURN-HIDN, so you can switch either off.
- Size
- W 597 × D 673 × H 1121 mm. Measured by the museum, so check it against the piece you're specifying, and scale it if yours differs.
- SketchUp
- The DXF for SketchUp is the same block with a surface in every closed area, so the Paint Bucket fills each one in one click. Import it with Merge coplanar faces ticked: how to import it.
- Use
- Free for your own projects, including drawings for clients. Please don't share it as part of a block library.
