Empire-style gondola side chair CAD block

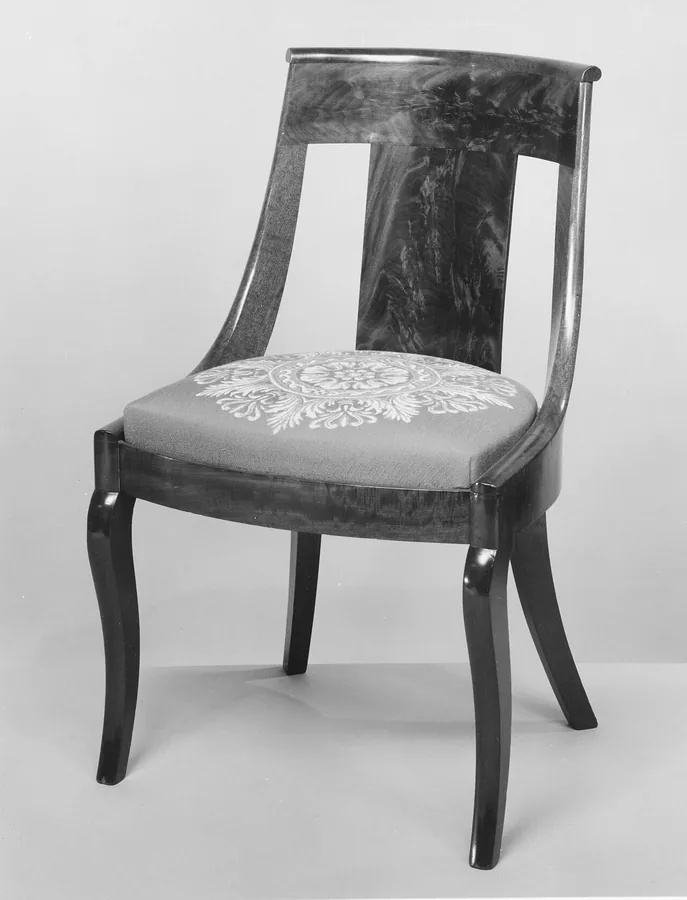

A Regency and Empire-era side chair after Duncan Phyfe, with a curved gondola back, a drop-in seat and sabre legs. Space it round a traditional dining table in plan, then use the elevations for a dining room wall.

Photo: The Metropolitan Museum of Art, CC0 (public domain). Source
- Item
- Empire-style gondola side chair
- Size
- W 480 × D 510 × H 810 mm
- Sized by
- Estimated from the photo
- Format
- DXF, millimetres
- Blocks
- CHAIR_GONDOLA_EMPIREwith _PLAN, _FRONT and _SIDE
What's in the file
- Three blocks
- CHAIR_GONDOLA_EMPIRE_PLAN, CHAIR_GONDOLA_EMPIRE_FRONT and CHAIR_GONDOLA_EMPIRE_SIDE. The plan's insertion point is the back-left corner; the elevations sit at floor level.
- Layers
- The outline is on layer 0 with ByBlock colour, so each block takes the layer you insert it on. Detail lines are on I-FURN-DETL and dashed hidden edges on I-FURN-HIDN, so you can switch either off.
- Size
- W 480 × D 510 × H 810 mm. Estimated from the photo, so check it against the piece you're specifying, and scale it if yours differs.
- SketchUp
- The DXF for SketchUp is the same block with a surface in every closed area, so the Paint Bucket fills each one in one click. Import it with Merge coplanar faces ticked: how to import it.
- Use
- Free for your own projects, including drawings for clients. Please don't share it as part of a block library.
