Camelback sofa CAD block

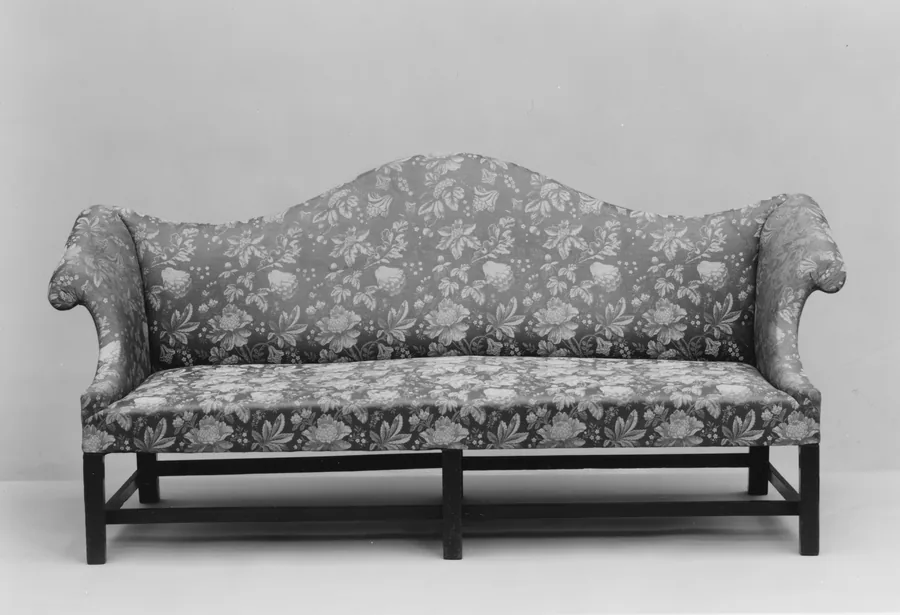

A Chippendale-period camelback sofa from about 1770, with a humped back rising to a central peak, scrolled arms and square legs joined by stretchers. 2242 mm wide and 775 mm deep: a long, formal sofa for a drawing room.
Photo: The Metropolitan Museum of Art, CC0 (public domain). Source
- Item
- Camelback sofa
- Size
- W 2242 × D 775 × H 1010 mm
- Sized by
- Measured by the museum
- Format
- DXF, millimetres
- Blocks
- SOFA_CHIPPENDALE_CAMELwith _PLAN, _FRONT and _SIDE
What's in the file
- Three blocks
- SOFA_CHIPPENDALE_CAMEL_PLAN, SOFA_CHIPPENDALE_CAMEL_FRONT and SOFA_CHIPPENDALE_CAMEL_SIDE. The plan's insertion point is the back-left corner; the elevations sit at floor level.
- Layers
- The outline is on layer 0 with ByBlock colour, so each block takes the layer you insert it on. Detail lines are on I-FURN-DETL and dashed hidden edges on I-FURN-HIDN, so you can switch either off.
- Size
- W 2242 × D 775 × H 1010 mm. Measured by the museum, so check it against the piece you're specifying, and scale it if yours differs.
- SketchUp
- The DXF for SketchUp is the same block with a surface in every closed area, so the Paint Bucket fills each one in one click. Import it with Merge coplanar faces ticked: how to import it.
- Use
- Free for your own projects, including drawings for clients. Please don't share it as part of a block library.
