Chaise longue (Louis XVI) CAD block

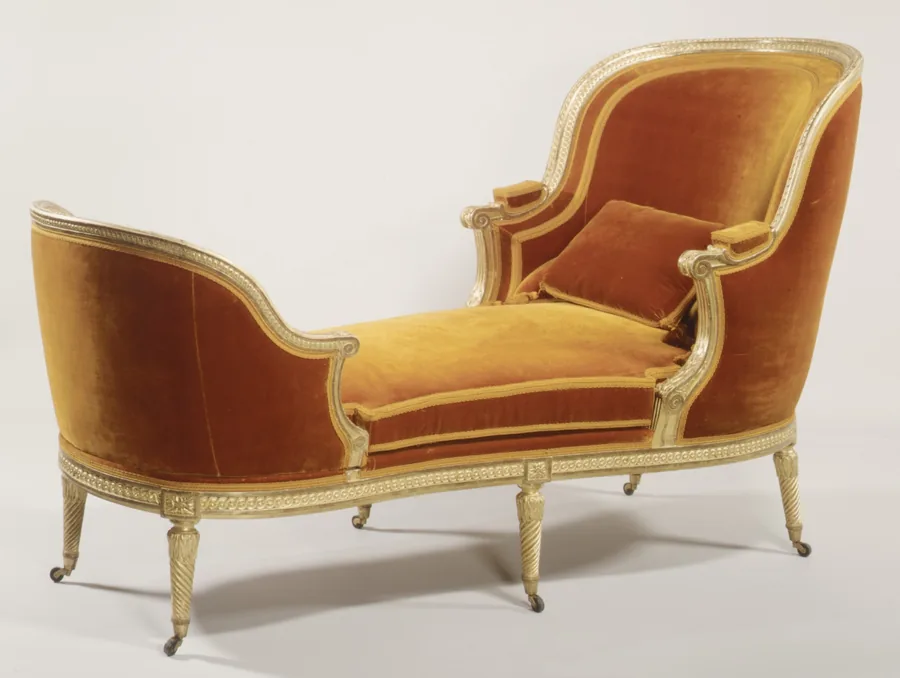

A Louis XVI chaise longue made in Paris around 1770, of the kind called a duchesse en bateau: a high tub back, a lower tub foot, scroll arms, a long seat and six fluted legs on castors. 1949 mm long and 781 mm wide, for a bedroom, a dressing room or a bay window.
Photo: The Metropolitan Museum of Art, CC0 (public domain). Source
- Item
- Chaise longue (Louis XVI)
- Size
- W 1949 × D 781 × H 1051 mm
- Sized by
- Measured by the museum
- Format
- DXF, millimetres
- Blocks
- CHAISE_LONGUE_LOUIS_XVIwith _PLAN, _FRONT and _SIDE
What's in the file
- Three blocks
- CHAISE_LONGUE_LOUIS_XVI_PLAN, CHAISE_LONGUE_LOUIS_XVI_FRONT and CHAISE_LONGUE_LOUIS_XVI_SIDE. The plan's insertion point is the back-left corner; the elevations sit at floor level.
- Layers
- The outline is on layer 0 with ByBlock colour, so each block takes the layer you insert it on. Detail lines are on I-FURN-DETL and dashed hidden edges on I-FURN-HIDN, so you can switch either off.
- Size
- W 1949 × D 781 × H 1051 mm. Measured by the museum, so check it against the piece you're specifying, and scale it if yours differs.
- SketchUp
- The DXF for SketchUp is the same block with a surface in every closed area, so the Paint Bucket fills each one in one click. Import it with Merge coplanar faces ticked: how to import it.
- Use
- Free for your own projects, including drawings for clients. Please don't share it as part of a block library.
