Glazed bookcase (Georgian) CAD block

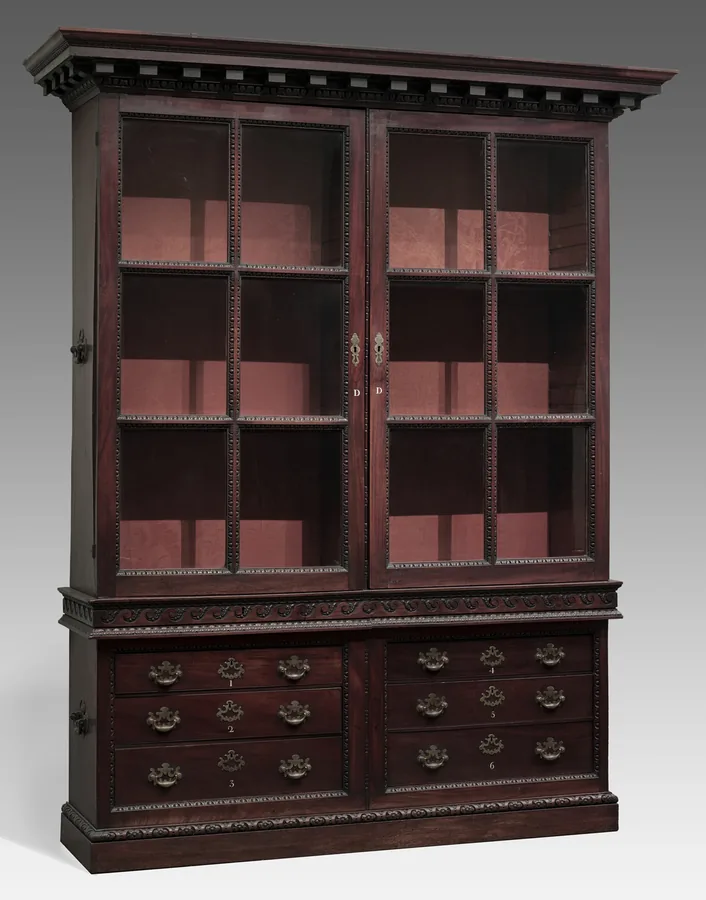

An English bookcase of about 1750: two glazed doors of six panes each, over a base of six drawers, under a dentil cornice. 2184 mm wide and 2692 mm tall, for a library wall or a study.
Photo: Art Institute of Chicago, CC0 (public domain). Source
- Item
- Glazed bookcase (Georgian)
- Size
- W 2184 × D 629 × H 2692 mm
- Sized by
- Measured by the museum
- Format
- DXF, millimetres
- Blocks
- BOOKCASE_GLAZED_GEORGIANwith _PLAN, _FRONT and _SIDE
What's in the file
- Three blocks
- BOOKCASE_GLAZED_GEORGIAN_PLAN, BOOKCASE_GLAZED_GEORGIAN_FRONT and BOOKCASE_GLAZED_GEORGIAN_SIDE. The plan's insertion point is the back-left corner; the elevations sit at floor level.
- Layers
- The outline is on layer 0 with ByBlock colour, so each block takes the layer you insert it on. Detail lines are on I-FURN-DETL and dashed hidden edges on I-FURN-HIDN, so you can switch either off.
- Size
- W 2184 × D 629 × H 2692 mm. Measured by the museum, so check it against the piece you're specifying, and scale it if yours differs.
- SketchUp
- The DXF for SketchUp is the same block with a surface in every closed area, so the Paint Bucket fills each one in one click. Import it with Merge coplanar faces ticked: how to import it.
- Use
- Free for your own projects, including drawings for clients. Please don't share it as part of a block library.
Using it in your CAD program
