Two-door wardrobe (Dutch kast) CAD block

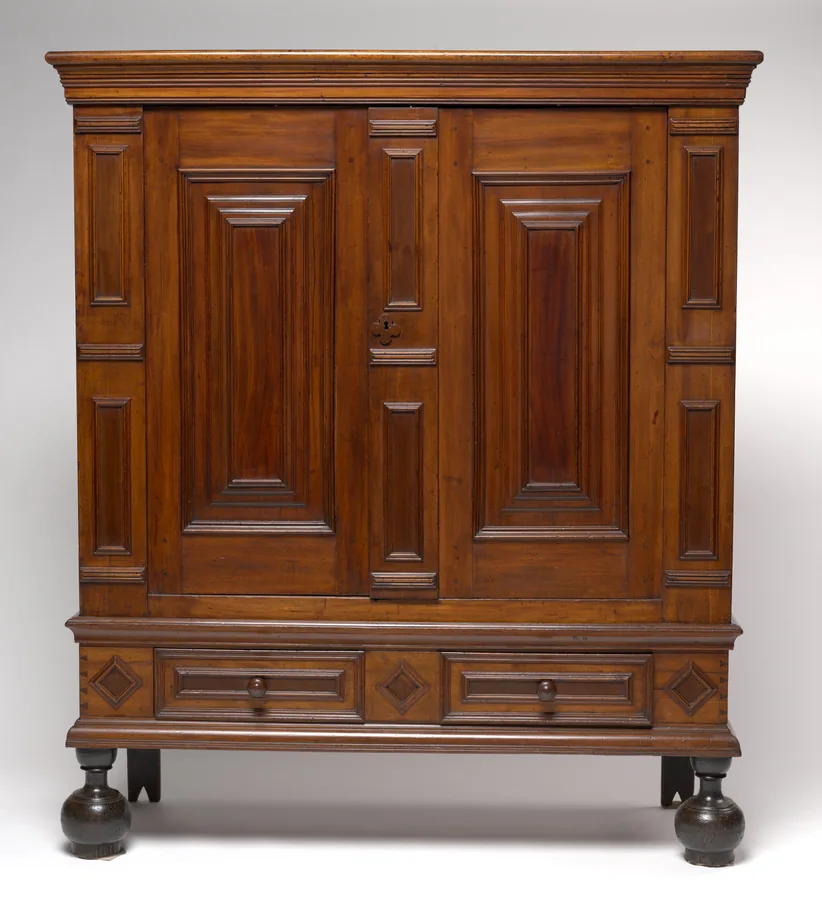

A Dutch kast, the panelled two-door wardrobe of the early 1700s, standing on a two-drawer base with large ball feet. It's drawn with its cornice, raised door panels and diamond-panel base, at 1842 mm wide and just under 2 m tall.
Photo: The Cleveland Museum of Art, CC0 (public domain). Source
- Item
- Two-door wardrobe (Dutch kast)
- Size
- W 1842 × D 698 × H 1968 mm
- Sized by
- Measured by the museum
- Format
- DXF, millimetres
- Blocks
- WARDROBE_2DOOR_KASwith _PLAN, _FRONT and _SIDE
What's in the file
- Three blocks
- WARDROBE_2DOOR_KAS_PLAN, WARDROBE_2DOOR_KAS_FRONT and WARDROBE_2DOOR_KAS_SIDE. The plan's insertion point is the back-left corner; the elevations sit at floor level.
- Layers
- The outline is on layer 0 with ByBlock colour, so each block takes the layer you insert it on. Detail lines are on I-FURN-DETL and dashed hidden edges on I-FURN-HIDN, so you can switch either off.
- Size
- W 1842 × D 698 × H 1968 mm. Measured by the museum, so check it against the piece you're specifying, and scale it if yours differs.
- SketchUp
- The DXF for SketchUp is the same block with a surface in every closed area, so the Paint Bucket fills each one in one click. Import it with Merge coplanar faces ticked: how to import it.
- Use
- Free for your own projects, including drawings for clients. Please don't share it as part of a block library.
