Swedish commode with writing slide CAD block

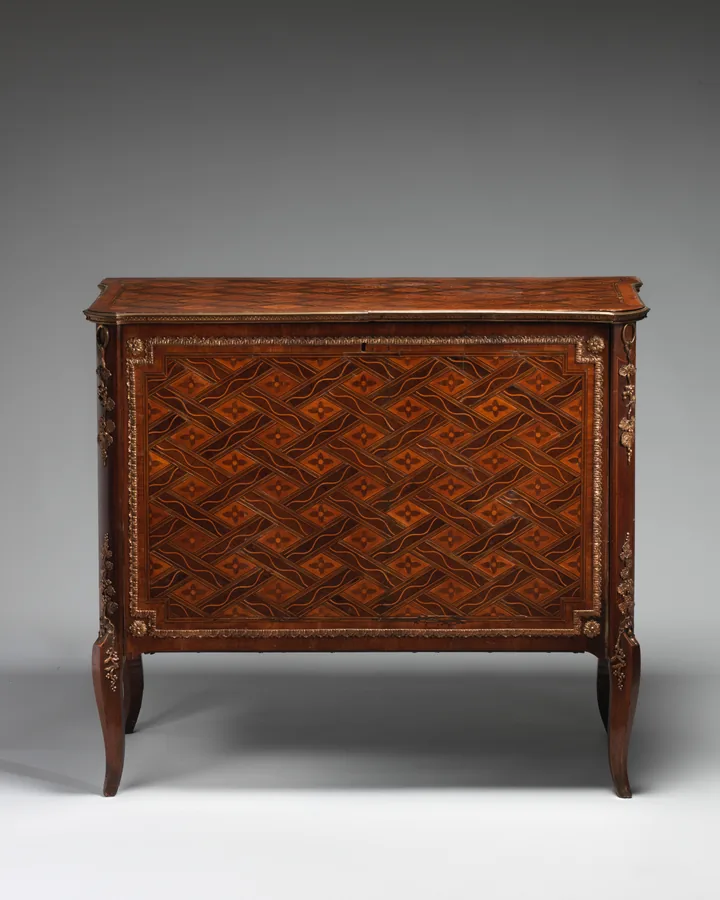

A Swedish commode made in Stockholm around 1772 by Christopher Fuhrlogh, with a parquetry door that opens on drawers and a pull-out writing slide, on slender cabriole legs. At 962 mm wide and 465 mm deep it is a writing commode for a bedroom or a study.
Photo: The Metropolitan Museum of Art, CC0 (public domain). Source
- Item
- Swedish commode with writing slide
- Size
- W 962 × D 465 × H 830 mm
- Sized by
- Measured by the museum
- Format
- DXF, millimetres
- Blocks
- COMMODE_SWEDISHwith _PLAN, _FRONT and _SIDE
What's in the file
- Three blocks
- COMMODE_SWEDISH_PLAN, COMMODE_SWEDISH_FRONT and COMMODE_SWEDISH_SIDE. The plan's insertion point is the back-left corner; the elevations sit at floor level.
- Layers
- The outline is on layer 0 with ByBlock colour, so each block takes the layer you insert it on. Detail lines are on I-FURN-DETL and dashed hidden edges on I-FURN-HIDN, so you can switch either off.
- Size
- W 962 × D 465 × H 830 mm. Measured by the museum, so check it against the piece you're specifying, and scale it if yours differs.
- SketchUp
- The DXF for SketchUp is the same block with a surface in every closed area, so the Paint Bucket fills each one in one click. Import it with Merge coplanar faces ticked: how to import it.
- Use
- Free for your own projects, including drawings for clients. Please don't share it as part of a block library.
